Highlights

JOVEN 510 INSTANT SHOWER HEATER

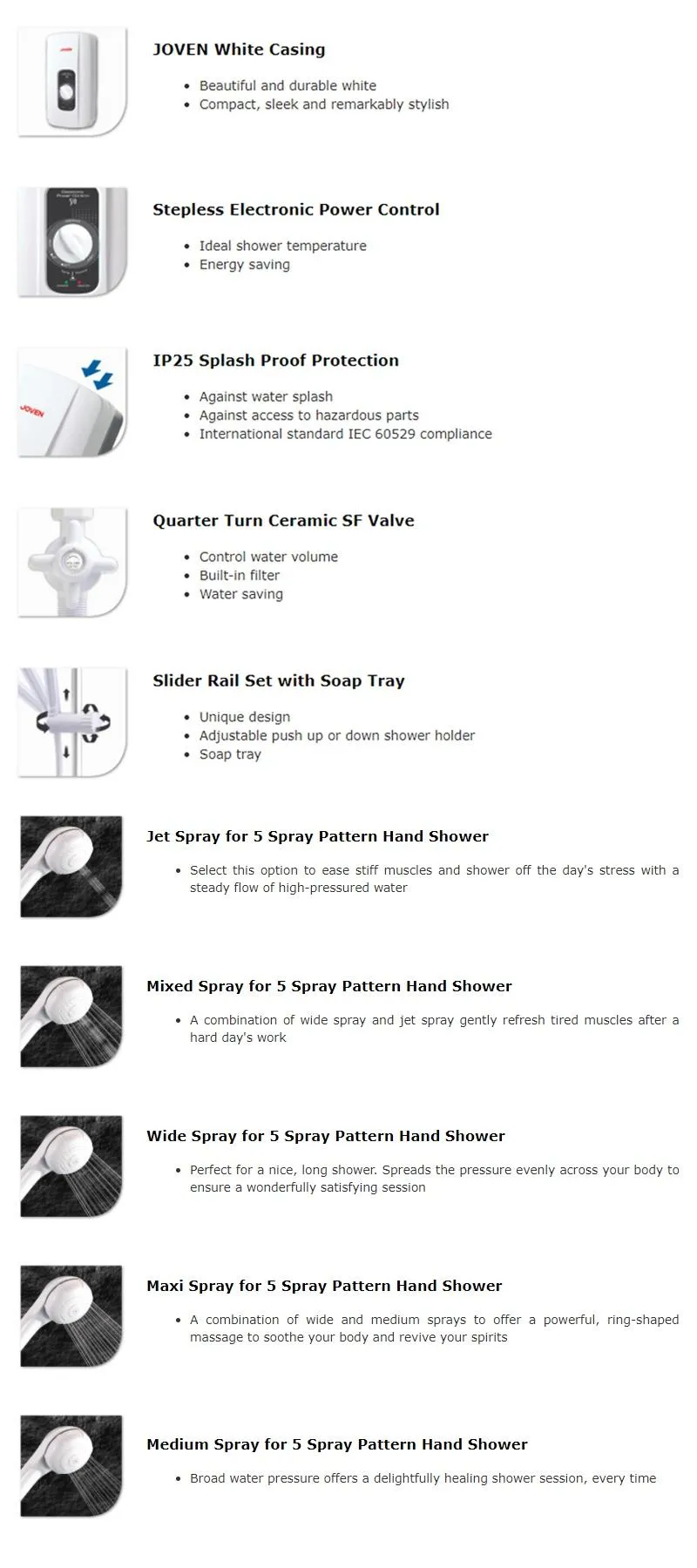

• Joven White Casing
• Stepless Electronic Power Control
• IP25 Splash Proof Protection
• Quarter Turn Ceramic SF valve (Control water volume,Built-in filter and water saving)
• Slider rail set with soap tray
• Jet spray for 5 spray pattern hand shower
• Mixed spray for 5 spray pattern hand shower
• Wide spray for 5 spray pattern hand shower
• Maxi spray for 5 spray pattern hand shower
• Medium spray for 5 spray pattern hand shower
• Min. Water Pressure 10 kpa / 1.45 psi / 0.1 bar
• Max. Water Pressure 380 kpa / 55 psi / 3.8 bar
• Min. Water Flow 2 litres / Mins
• Max.Water Flow 8 litres / Mins

Product details of

JOVEN 510 INSTANT SHOWER HEATER







Electrical Loading	2.2 kW 10.0 A 220 Va.c. 50 / 60 Hz 3.0 kW 13.0 A 230 Va.c. 50 / 60 Hz 3.3 kW 15.0 A 220 Va.c. 50 / 60 Hz 3.3 kW 13.8 A 240 Va.c. 50 / 60 Hz 3.6 kW 16.0 A 230 Va.c. 50 / 60 Hz 3.6 kW 15.0 A 240 Va.c. 50 / 60 Hz 4.4 kW 20.0 A 220 Va.c. 50 / 60 Hz 4.8 kW 21.0 A 230 Va.c. 50 / 60 Hz 5.2 kW 24.0 A 220 Va.c. 50 / 60 Hz
Min. Water Pressure	10 kPa / 1.45 psi / 0.1 bar
Max. Water Pressure	380 kPa / 55 psi / 3.8 bar
Min. Water Flow	2 litres per minute
Max. Water Flow	8 litres per minute
Inlet / Outlet Connection	ø15mm (1/2” BSP) – Single Point System
Dimensions	160 X 295 X 100 mm
Weight	2.4 kg (520), 2.3 kg (510), 2.0 kg (505) & 1.9 kg (500)
